1. About this Volume

This volume covers the PicoCalc as a hardware-hacking instrument and as a ham-radio companion.

The hacking section covers what’s actually feasible (sub-GHz with CC1101, LoRa with RFM95, BLE on Pico 2 W, PIO-based bus probing, JTAG, and limited WiFi monitor mode), where the PicoCalc wins versus other tools in the Hack Tools hub (it’s a credible CC1101 / RFM95 platform but the Cardputer is the better tool for serious WiFi attacks; HackRF is a wideband companion not a replacement), and the legal envelope around RF transmit (FCC Part 15 / ETSI compliance for the 433/915 MHz bands, plus the ham-license requirement for amateur-band TX).

The ham-radio section covers APRS over AFSK with a full audio-interface schematic to a real rig, LoRa-APRS via RFM95 modules, CW keyer + decoder (pure-software practice mode, plus rig-keying via PTT line), WSPR controller for an external transmitter (QCX-mini, Etherkit Si5351), and hamlib bridges to a CAT-controllable desk rig.

The companion add-on hardware (CC1101, RFM95, audio interfaces) and their schematic theory are covered in Volume 7. Legal/ethics references in _shared/legal_ethics.md.

2. Use-Case Playbooks: Hacking and Ham Radio

Amateur-radio handheld VHF transceiver — class of rig the PicoCalc + CC1101 / RFM95 add-ons are most readily paired with for digital-mode VHF and LoRa-APRS work.

Figure 2.0 — VHF handheld radio. File:Amateur radio VHF handheld transceiver on yacht.jpg by Nigel Jones. License: CC BY-SA 4.0. Via Wikimedia Commons.

2.3 PicoCalc as a hacking tool

The PicoCalc is a credible hardware-hacking instrument when paired with the right add-on radios. Compared to other tools in the Hack Tools hub:

vs. Cardputer: PicoCalc has a better screen and more RAM but no built-in WiFi attack stack. Cardputer wins for WiFi attacks; PicoCalc wins for sub-GHz / LoRa / I²C protocol work where the larger screen helps.
vs. HackRF One: PicoCalc is a handheld supplement to a wideband SDR, not a replacement. Pair them: PicoCalc as a controller with the LCD; HackRF as the radio over USB-host or a separate machine.
vs. Flipper Zero: similar ambition, but PicoCalc gives you a real keyboard and more screen, while Flipper has an integrated sub-GHz radio. PicoCalc + CC1101 covers the same sub-GHz ground at lower cost; Flipper has way more polished apps.

2.3.1 What’s actually feasible

Workload	PicoCalc capability
433/868/915 MHz sniff/replay	CC1101 add-on; works well
LoRa sniffing	RFM95 add-on; works well
WiFi monitor mode	Pico 2 W has limited monitor capability
WiFi deauth / handshake capture	Possible on Pico 2 W but ESP32 (Cardputer) is better
BLE scanning	Pico 2 W; works
RFID/NFC	No built-in; add a PN532 over I²C
I²C / SPI / 1-wire bus probing	Pico’s PIO is excellent at this
JTAG bus probing	Yes via PIO
Side-channel (power analysis)	No (no shunt amp built in)
Glitching	RP2350’s PIO is good for glitch generators

2.3.2 Setup — sub-GHz with CC1101

Wire CC1101 to side header (SPI; see §10.3).
Flash Picoware (with CC1101 driver) or build a custom C app.
Picoware’s UI: Apps → Sub-GHz → Read.
Hold the PicoCalc near a transmitting device (garage opener, weather station, etc.). Picoware shows the captured frame; you can replay it.

2.3.3 Setup — LoRa sniffing

Wire RFM95 (§10.2).
Flash a small MicroPython script using micropython-loralib:

from machine import SPI, Pin
import lora
spi = SPI(0, baudrate=10000000, sck=Pin(18), mosi=Pin(19), miso=Pin(16))
radio = lora.SX127x(spi, cs=Pin(17), reset=Pin(15), dio0=Pin(14))
radio.set_freq_mhz(915)
radio.set_spread_factor(7)
radio.set_bandwidth(125000)
radio.recv_continuous(lambda payload, rssi: print(f"{rssi}dBm: {payload}"))

This dumps every LoRa frame in range to the REPL.

2.3.4 Setup — I²C bus probe

Connect target’s SDA / SCL / GND to side header.
Use a PIO-based I²C analyzer (community code; search “pico i2c sniffer”):

// Pseudo-code: PIO state machine watches SDA / SCL transitions
// Decoded byte stream printed to USB CDC

The 200×200 region of the LCD becomes a real-time byte/timing display.

2.3.5 Legal — read this

The legal/ethics doc at ../_shared/legal_ethics.md of this project applies: you transmit only on hardware you own or have written authorization to test. Receiving / monitoring is broader (passive RX is generally OK in most jurisdictions for unencrypted hobby bands), but sub-GHz transmit (433/915 MHz) requires an FCC Part 15 power-budget compliance check in the US (and ETSI equivalents in Europe).

2.4 PicoCalc as a ham-radio companion

PicoCalc isn’t an HF transceiver — it has no transmitter or receiver of its own. It can, however, serve as:

A digital-mode encoder/decoder when paired with a real rig over audio or USB.
A portable APRS terminal when paired with a 1200 baud AFSK modem or LoRa-APRS radio.
A CW keyer and Morse decoder on its own (no rig needed for practice, paired with a rig via PTT line for real CW).
A WSPR beacon controller when paired with an external transmitter.

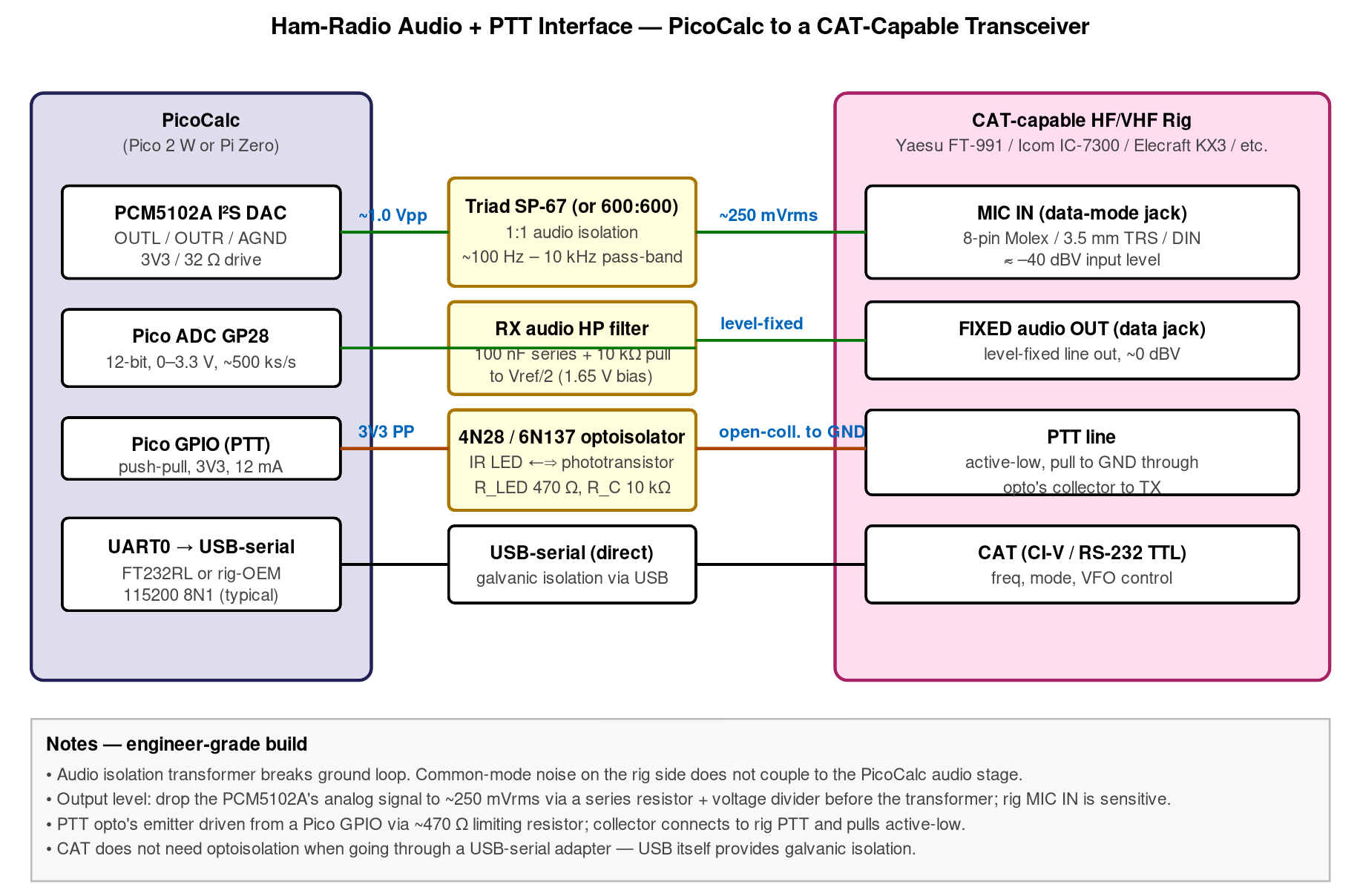

Ham-radio audio + PTT interface from PicoCalc to a CAT-capable transceiver. I²S DAC out → 1:1 isolation transformer → rig MIC IN; rig fixed-audio OUT → HP filter + bias → Pico ADC; Pico GPIO → opto… — Ham-radio audio + PTT interface from PicoCalc to a CAT-capable transceiver. I²S DAC out → 1:1 isolation transformer → rig MIC IN; rig fixed-audio OUT → HP filter + bias → Pico ADC; Pico GPIO → optoisolator → rig PTT line; CAT via USB-serial (USB itself provides galvanic isolation).

Figure 2.4 — Ham-radio interface schematic. Hand-authored for this volume.

2.4.1 APRS — packet radio terminal

APRS (Automatic Packet Reporting System) is a 1200-baud AX.25-over-AFSK protocol used by hams for position reporting and short messages. The PicoCalc can encode/decode APRS in software:

Audio interface: PCM5102A I²S DAC (§10.1) for transmit audio out; ADC pin GP28 for receive audio in. Wire to your rig’s mic/speaker jacks (with isolation transformers — see references).
Software: a community PicoMite library implements 1200 AFSK on Pico’s PIO. Source: https://github.com/topics/aprs — search forks tagged picomite.
What you do with it: connect to your VHF rig, your callsign and grid go on the APRS network. Receive packets on screen, display incoming messages, transmit short packets.

2.4.2 LoRa-APRS

LoRa-APRS routes APRS over LoRa instead of AFSK — much longer range at lower power, no audio modulation. The hardware path:

RFM95 module wired to side header (§10.2).
Antenna for the 433.775 MHz LoRa-APRS band (in EU; US uses 915 MHz subbands).
Software: https://github.com/lora-aprs for reference implementations. The LoRa_APRS_iGate and LoRa_APRS_Tracker projects port to Pico with minor changes.
Configure your callsign in the source, build, flash, transmit position.

This is a working portable LoRa-APRS station. Range is typically 5-15 km with stock antennas; better with elevated antennas. See https://how.aprs.works/lora-aprs-bringing-aprs-into-the-21st-century/ for the full background.

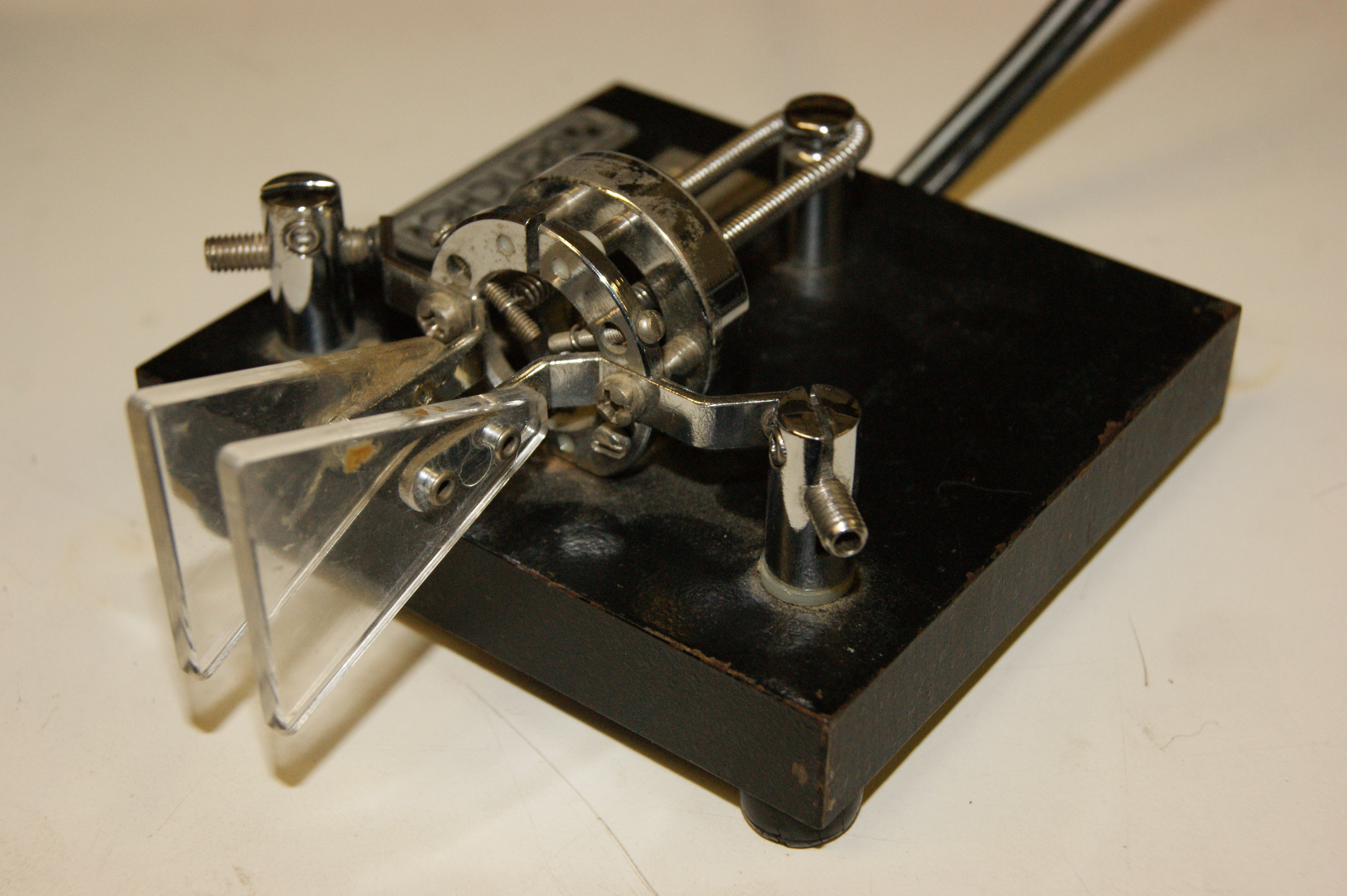

Bencher BY-1 iambic paddle — the canonical CW keyer paddle. Two contacts (dit on one side, dah on the other) feed the keyer logic; on PicoCalc that logic lives in firmware (PicoMite, MicroPython, o… — Bencher BY-1 iambic paddle — the canonical CW keyer paddle. Two contacts (dit on one side, dah on the other) feed the keyer logic; on PicoCalc that logic lives in firmware (PicoMite, MicroPython, or M0 on Lyra).

Figure 2.4 — Iambic paddle. File:Bencher BY-1 Iambic Paddle.JPG by camelNotation. License: CC0. Via Wikimedia Commons.

2.4.3 CW keyer and Morse decoder

Pure software on PicoCalc — no radio needed for practice mode.

Keyer (PicoMite):

' CW keyer — paddle inputs on GP12 / GP13, output on GP14
DIM speed_wpm = 20
DIM dit_ms = 1200 / speed_wpm
DO
  IF PIN(12) = 0 THEN  ' dit paddle
    PIN(14) = 1 : PAUSE dit_ms : PIN(14) = 0 : PAUSE dit_ms
  ENDIF
  IF PIN(13) = 0 THEN  ' dah paddle
    PIN(14) = 1 : PAUSE dit_ms*3 : PIN(14) = 0 : PAUSE dit_ms
  ENDIF
LOOP

The output (GP14) drives the rig’s keying line via a 2N3904 transistor.

Decoder: read audio from the rig via the ADC, run an FFT to detect the 600 Hz tone, threshold-detect dot/dash lengths, decode to ASCII. K3NG’s decoder algorithm is the canonical reference; a Pico port exists at https://github.com/k3ng/k3ng_cw_keyer.

2.4.4 WSPR (Weak Signal Propagation Reporter)

WSPR is a slow data mode that reports propagation paths globally. The PicoCalc cannot transmit on its own, but with an external WSPR-capable transmitter (QRP Labs QCX-mini, Etherkit Si5351 + amp), the PicoCalc can:

Calculate the WSPR encoding from your callsign, grid, and dBm.
Time the transmission window to the WSPR clock (even-minute UTC slots; WSPR uses 2-minute windows starting at 00, 02, 04, … seconds past the hour).
Key the external transmitter’s PTT line via GPIO (same optoisolator circuit as the CW keyer above).
Log received WSPR spots from the global database if the PicoCalc has network access (via Pi Zero compute path or a USB-tethered phone).

Hardware pairing — QCX-mini: The QRP Labs QCX-mini is a 5 W CW/WSPR transceiver kit (~$55). Connect PicoCalc → QCX-mini via a 3.5 mm key jack (GP14 through the 2N3904 keying circuit). The QCX-mini’s built-in WSPR mode handles the FSK modulation internally — the PicoCalc’s job is to calculate the symbol sequence and time the TX window. CAT control is not needed; the QCX-mini sits on a fixed WSPR frequency (e.g. 14.0956 MHz for 20 m).

Hardware pairing — Si5351 + PA: For a fully homebrew WSPR beacon, wire an Etherkit Si5351A breakout to the Pico via I²C. The Si5351 generates the RF carrier; the PicoCalc shifts its frequency in 1.46 Hz steps to encode the WSPR symbols. Add a BS170 PA stage for ~200 mW output — enough for WSPR on 20/30/40 m with a resonant antenna. Schematic and BOM in Volume 7 §10.4.

Software skeleton (MicroPython, Pico 2):

from machine import Pin, I2C, RTC
import time

# WSPR symbol table: 162 symbols, each 0-3, ~0.68 s per symbol
# Generated from callsign + grid + power using the WSPR encoding algorithm
def wspr_encode(callsign: str, grid: str, dbm: int) -> list[int]:
    """Return 162-symbol WSPR message. See Joe Taylor K1JT's algorithm."""
    # Implementation: bit-interleaved convolutional code + sync vector
    # Reference: https://www.physics.princeton.edu/pulsar/k1jt/wspr.html
    ...  # ~80 lines; port from the C reference in wsprd

def wait_for_even_minute():
    """Block until the next even-minute UTC boundary."""
    while True:
        t = time.gmtime()
        if t[4] % 2 == 0 and t[5] == 0:
            return
        time.sleep(0.1)

# PTT keying
ptt = Pin(14, Pin.OUT, value=0)

symbols = wspr_encode("N0CALL", "FN31", 23)
wait_for_even_minute()
ptt.on()
for sym in symbols:
    # Shift Si5351 frequency by sym * 1.4648 Hz
    # si5351.set_freq(base_freq + sym * 1.4648)
    time.sleep(0.6827)  # 256/375 seconds per symbol
ptt.off()

Clock synchronization is critical — WSPR decode fails if TX timing drifts more than ~1 s from UTC. Options: GPS module on UART (§10.5), NTP via the Pi Zero compute path, or a DS3231 RTC (§10.8 in Volume 7) set once from a known-good source.

Licensing reminder: WSPR transmits on amateur-radio bands. You need a ham license (Technician class minimum in the US; equivalent in your jurisdiction) and must identify with your own callsign. Receive-only monitoring of WSPR spots requires no license.

3. Resources

Resource	URL
CC1101 MicroPython driver	https://github.com/peterhinch/micropython-radio
RFM95 / SX127x MicroPython library	https://github.com/lemariva/uPyLoRa
APRS protocol reference (AX.25)	http://www.aprs.org/doc/APRS101.PDF
LoRa-APRS project	https://github.com/lora-aprs
K3NG CW keyer (Arduino, portable to Pico)	https://github.com/k3ng/k3ng_cw_keyer
WSPR encoding algorithm (K1JT)	https://www.physics.princeton.edu/pulsar/k1jt/wspr.html
QRP Labs QCX-mini (WSPR/CW transceiver kit)	https://qrp-labs.com/qcxmini.html
Etherkit Si5351 Arduino library	https://github.com/etherkit/Si5351Arduino
WSPRnet spot database	https://www.wsprnet.org/
PicoCalc hardware schematics	https://github.com/clockworkpi/PicoCalc
FCC Part 15 (ISM band limits)	https://www.ecfr.gov/current/title-47/chapter-I/subchapter-A/part-15
Legal/ethics reference (this project)	`../_shared/legal_ethics.md`
