1. About this volume

Vol 2 walks the hypothesized Cardputer Zero hardware at schematic-style depth. Because no authoritative spec sheet exists, every claim is framed as hypothesis with explicit confidence rating; the most-likely topology and component choices are derived from (a) family pattern, (b) typical M5Stack budget-tier design conventions, (c) the obvious cost cuts vs the ADV.

For the canonical schematic-grade hardware walk on the Cardputer ADV, cross-reference ../../../M5Stack Cardputer ADV/03-outputs/Cardputer_ADV_Complete.html Vol 2. Anything from that volume that’s “preserved unchanged in Zero” carries forward here; anything marked “cut” or “reduced” is detailed below.

Research-baseline reminder: every numeric value in this volume should be cross-checked against the actual product on acquisition. The architecture and reasoning are robust; the specific part numbers and capacities may shift.

2. Block diagram — hypothesized topology

   M5Stack Cardputer Zero — Hypothesized Block Diagram
   ═══════════════════════════════════════════════════════

   USB-C ──┬─→ Charge controller (TP4056-class)
           │      │
           │      ├──→ LiPo cell (500-1000 mAh, 1S)
           │      │
           │      └──→ 5V bus
           │                │
           └──→ ESP32-S3 ←──┴────── Buck reg ──→ 3.3V bus
                  USB-CDC
                  │                              │
                  │              ┌───────────────┤
                  │              │               │
                  │              ▼               ▼
                  │       ┌──────────┐    ┌──────────┐
                  │       │ Display  │    │ Keyboard │
                  │       │ ST7789V2 │    │ scanner  │
                  │       │ 1.14"    │    │ (TCA8418 │
                  │       │ 240×135  │    │ or GPIO) │
                  │       │ SPI      │    │ I²C      │
                  │       └──────────┘    └──────────┘
                  │
                  ├──→ microSD (SDIO/SPI)
                  │
                  ├──→ Grove HY2.0-4P
                  │       (3.3V + GND + 2 GPIO)
                  │
                  ├──→ Speaker driver (PWM or class-D)
                  │       │
                  │       └──→ Speaker (8 Ω, 1 W)
                  │
                  └──→ Status LEDs (charge, power)


   What is HYPOTHESIZED ABSENT (vs the ADV):
   ─ EXT 14-pin bus ─ Cap LoRa-1262 path
   ─ ES8311 audio codec
   ─ MEMS microphone
   ─ 3.5 mm audio jack
   ─ BMI270 6-axis IMU
   ─ IR LED transmit (possibly)

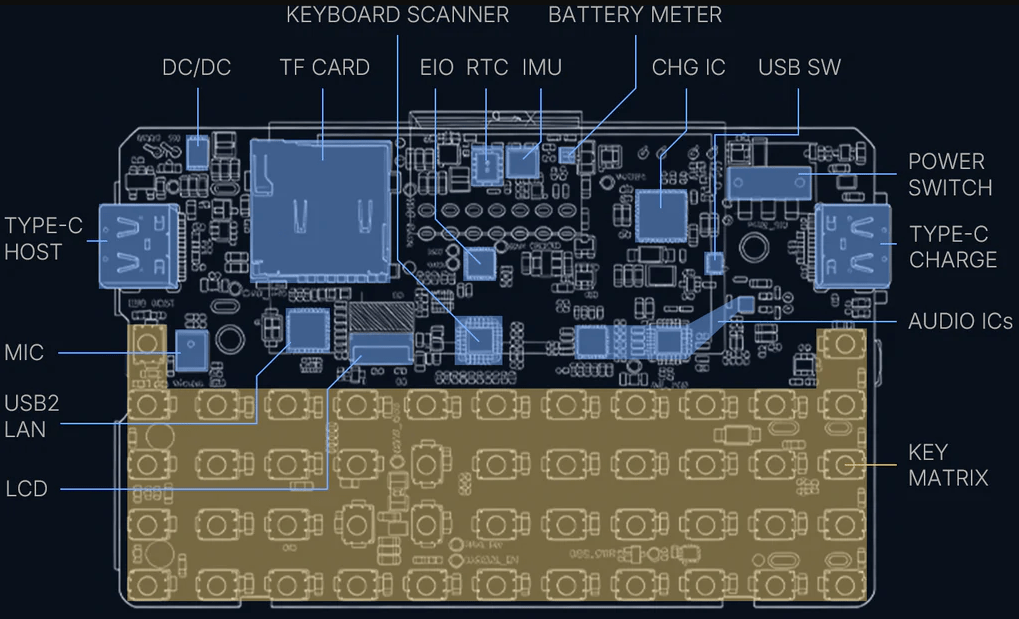

[FIGURE SLOT — Vol 2, § 2] PCB top-side photo of Cardputer Zero showing component layout. Source: vendor product page or Photo Helper search “M5Stack Cardputer” once a Zero teardown becomes available. Caption when filled: “Figure 2.1 — Cardputer Zero PCB top side. Photo: [source].”

[FIGURE SLOT — Vol 2, § 2] PCB bottom-side photo (likely battery side). Source: same as above. Caption when filled: “Figure 2.2 — Cardputer Zero PCB bottom side / battery compartment. Photo: [source].“

3. ESP32-S3 silicon — the foundation

3.1 Likely MCU variant

Aspect	Hypothesis	Confidence	Notes
Family	ESP32-S3	Medium	All Cardputer family members are ESP32-S3
Package	ESP32-S3FN8 module	Medium	Cardputer ADV uses Stamp-S3A (similar); Zero could go module or QFN direct
Cores	Dual Xtensa LX7 (240 MHz)	High	Standard ESP32-S3
Flash	8 MB QSPI (built-in or external)	Medium	Family standard; budget could drop to 4 MB
PSRAM	None	Medium	ADV omits PSRAM; budget variant likely also
Wi-Fi	802.11 b/g/n (2.4 GHz only)	High	ESP32-S3 silicon
Bluetooth	BLE 5.0 (no Classic BT)	High	ESP32-S3 silicon
USB	Native USB-CDC + OTG (host or device)	High	ESP32-S3 silicon
Crystal	40 MHz external	High	Standard
GPIO count	~36 user-accessible (S3) minus subsystem reservations	Medium	Standard S3
ADC channels	2 SAR-ADC × 10 channels	High	Standard S3
DAC channels	None (S3 lost the DAC of original ESP32)	High	Silicon constraint
I²C masters	2	High	Standard
SPI masters	4 (2 general + 2 dedicated)	High	Standard
UART	3	High	Standard
RMT (IR-encode)	Yes	High	Standard S3
LED PWM	Yes (8 channels)	High	Standard

3.2 What the silicon enables

The ESP32-S3 is the same silicon as in tjscientist’s other ESP32-S3 tools (Cardputer ADV, M5StickS3, AWOK Dual Touch V3’s primary MCU, etc.). What this gives the Zero:

Wi-Fi 2.4 GHz — full Marauder / Bruce / Evil-M5 firmware compatibility (with proper PlatformIO env)
BLE 5.0 — BLE scanning, advertising, GAP/GATT
USB OTG host mode — HID emulation (BadUSB), USB MSC, USB audio devices
RMT — precise pulse-stream generation for IR (if IR LED present), 1-Wire, NeoPixel
240 MHz dual-core — adequate compute for most embedded tasks; below desktop class but well above hobbyist tier

3.3 What the silicon doesn’t have

Inherited constraints from the ESP32-S3 family:

No 5 GHz Wi-Fi — 5 GHz needs ESP32-C5 (Banshee, AWOK ESP32 C5) or different silicon entirely
No Classic Bluetooth (only BLE) — limits some legacy device pentest scenarios
No DAC — ESP32-S3 lost the original ESP32’s DAC; audio out via PWM or external codec
No native Ethernet PHY — needs external W5500 or similar
No camera interface — needs Grove camera or external SPI camera

The “no 5 GHz” is the relevant gap for pentest workflows. For tjscientist’s lineup: Banshee or AWOK ESP32 C5 covers this when needed.

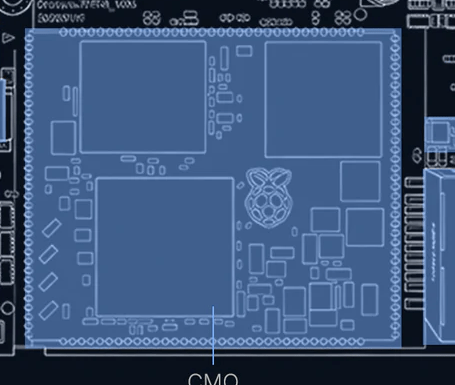

[FIGURE SLOT — Vol 2, § 3] Close-up photo of the ESP32-S3 module package on the Cardputer Zero PCB (with marking visible if possible). Source: Photo Helper search “ESP32-S3 module package” generic or product teardown. Caption when filled: “Figure 2.3 — ESP32-S3 silicon on Cardputer Zero PCB. Markings show [model + date code].“

4. Display subsystem (presumed)

4.1 Likely display specs

Aspect	Hypothesis	Confidence	Notes
Size	1.14” diagonal	Medium	Cardputer family standard
Resolution	240 × 135 pixels	Medium	Cardputer family standard
Type	IPS LCD	Medium	Family standard; could downgrade to TN
Color depth	16-bit (RGB565)	High	Standard for this controller class
Controller	ST7789V2	Medium	Family standard
Interface	SPI 4-wire (CS, CLK, DATA, DC)	High	Standard for ST7789
Backlight	White LED, PWM-controlled	High	Standard
Active area	~24 × 14 mm	Medium	Standard for 1.14”
Pixel density	~219 ppi	High (derived from resolution)	Sharp enough for text
Viewing angle	IPS gives ~170° before color shift	Medium	Wide angle if IPS confirmed

4.2 Layout convention

The Cardputer family lays the display in landscape orientation (240 wide × 135 tall) with the long axis matching the keyboard width. This is the same convention the Zero presumably follows.

   ┌─────────────────────────────────────┐
   │  ████████████████████████████████   │  ← Display (240 × 135)
   │  ████████████████████████████████   │
   │  ████████████████████████████████   │
   ├─────────────────────────────────────┤
   │  Q W E R T Y U I O P                │  ← Keyboard
   │  A S D F G H J K L                  │
   │  Z X C V B N M , .                  │
   └─────────────────────────────────────┘

4.3 Rendering performance

For typical Mayhem-class or pentest-firmware UI:

Full-screen redraws: ~30-60 fps depending on SPI clock
Text + menu UI: imperceptible to user
Spectrum / waterfall: smooth at typical sample rates (~20 Hz update)
Custom graphics: limited only by SPI bus speed (~40 MHz typical)

For tjscientist’s expected use cases on Zero: rendering is not a bottleneck.

[FIGURE SLOT — Vol 2, § 4] Display close-up showing UI rendering. Source: vendor demo photo or Photo Helper search “1.14 inch IPS LCD ESP32” generic. Caption when filled: “Figure 2.4 — Cardputer Zero display rendering [specific UI]. Photo: [source].“

5. QWERTY keyboard subsystem

5.1 The defining Cardputer feature

The 56-key membrane QWERTY is the defining Cardputer characteristic — what makes the Cardputer family distinct from generic ESP32-S3 dev boards or other M5Stack handhelds (like the StickS3). If the Zero doesn’t have a QWERTY, it’s not a Cardputer.

5.2 Likely keyboard implementation

Aspect	Hypothesis	Confidence	Notes
Layout	56-key membrane QWERTY	High	Family standard
Technology	Membrane (rubber-dome under PCB pads)	High	Cost-effective; family standard
Scanner IC	TCA8418 OR GPIO direct scan	Medium	ADV uses TCA8418; budget variant may go GPIO
Communication	I²C (if TCA8418) or GPIO	Medium	Depends on scanner choice
Interrupt line	Yes (KB_INT pin → MCU IRQ)	Medium	Standard for keyboard input
Key registers	Standard PS/2-like scancodes	Medium	M5Cardputer library handles abstraction
Multi-key chord	Limited (3-4 keys depending on scan)	Medium	Membrane keyboards have ghosting
Backlit	No	High	Cost cut; family standard
Layout (row × col)	8 rows × 7 cols = 56 keys	High	Standard

5.3 Keyboard layout (presumed standard)

   ┌────────────────────────────────────────────────────────┐
   │  TAB Q  W  E  R  T  Y  U  I  O  P  BKSP                │
   │  CAPS  A  S  D  F  G  H  J  K  L  ENTER                │
   │  SHIFT Z  X  C  V  B  N  M  ,  .  /                    │
   │  CTRL ALT FN ─────── SPACE ────────  ARROWS  ESC       │
   └────────────────────────────────────────────────────────┘

   Standard ASCII letters + Tab/Enter/Backspace/Shift/Ctrl/Alt/Fn
   + arrow cluster + Esc + punctuation
   Fn-key combinations for function keys, symbols, brightness, volume

5.4 Practical considerations

Typing speed: membrane keyboards in this size class support ~20-30 WPM for skilled users — adequate for short inputs, not productive for prose
Ghosting / rollover: rolling chord combinations may not register; not gaming-class
Glove compatibility: thin gloves work; thick gloves are problematic
Lifespan: ~1 million keypresses for typical membrane keyboards; well beyond typical Cardputer use

5.5 Comparison vs sibling Cardputers

Aspect	Cardputer K132	Cardputer ADV	Cardputer Zero (presumed)
Keys	56	56	56 (presumed)
Layout	Same	Same	Same (presumed)
Tactile feel	Standard	Refined	TBD
Driver library	M5Cardputer	M5Cardputer	M5Cardputer (presumed)
Backlight	No	No	No

If Zero matches family standard: porta-keyboard workflows port unchanged.

[FIGURE SLOT — Vol 2, § 5] Keyboard close-up photo showing key layout + spacing. Source: vendor product page or Photo Helper. Caption when filled: “Figure 2.5 — Cardputer Zero keyboard close-up. 56-key membrane QWERTY in M5Stack standard layout.”

6. Audio subsystem (presumed reduced)

6.1 What’s likely cut from the ADV

The Cardputer ADV has a substantial audio chain:

ES8311 codec (high-quality DAC/ADC)
MEMS microphone
3.5 mm audio jack output
AW8737 class-D speaker amp + 1 W speaker

The Zero (presumed) cuts the codec, mic, and jack to save cost. Speaker remains.

6.2 Likely Zero audio topology

   ESP32-S3 PWM ──→ Filter ──→ Speaker
   (single audio
    output channel)

   No microphone path
   No 3.5 mm jack
   No external codec

Aspect	Hypothesis	Confidence	Notes
Audio output	PWM-driven speaker via GPIO	Medium	Cost-cut from ADV
Codec	None	Medium	Cost cut
Microphone	None	Medium	Cost cut
3.5 mm jack	None	Medium	Cost cut
Speaker	8 Ω 1 W or similar	High	Cost-trivial
Quality	Basic — beeps, simple playback	Medium	Adequate for UI feedback, not music
Sample rate	~8-16 kHz effective via PWM	Medium	Limited by ESP32-S3 PWM bandwidth
Volume control	PWM duty cycle adjustment	High	Software-controlled

6.3 What this means operationally

Zero supports:

Beeps, click feedback, simple alarms
Low-fi voice playback (~speech intelligibility OK)
Music playback (questionable quality; not productive)

Zero does NOT support:

Voice recording
High-fidelity audio
ESP-NOW walkie-talkie firmware (no mic)
Wake-word detection (no mic)
Audio FFT / spectrum analysis (no mic)
Hearable headphone monitoring (no jack)

For these features → Cardputer ADV (with full audio chain) or M5StickS3 (also full audio).

7. Power topology (presumed)

7.1 Likely power tree

   USB-C 5V Vbus
        │
        ▼
   ┌─────────────┐
   │ Charge      │ TP4056 / MCP73831-class
   │ controller  │
   └──────┬──────┘
          │
          ▼
   ┌─────────────┐
   │ LiPo cell   │ 500-1000 mAh, 1S, 3.7V nominal
   │ + protection│ DW01+ / FS8205A (typical)
   └──────┬──────┘
          │
          ▼
   ┌─────────────┐
   │ Buck reg    │ Output: 3.3V system bus
   │ (SY8089 etc)│ Efficiency: ~85-90%
   └──────┬──────┘
          │
          ├──→ ESP32-S3 (typical 200-500 mA depending on Wi-Fi state)
          ├──→ Display + backlight (~30-80 mA at brightness setting)
          ├──→ Keyboard scanner (~1-2 mA active)
          ├──→ microSD (~50-100 mA on write activity)
          ├──→ Grove 3.3V output (limited current — typically 100-200 mA max)
          └──→ Speaker driver (varies; PWM mode draws minimally)

7.2 Likely capacity vs ADV

Aspect	Cardputer ADV	Cardputer Zero (presumed)	Delta
Battery	1750 mAh	500-1000 mAh	~30-60% reduction
Runtime typical	~6-8 hours	~3-5 hours	~50% reduction
Charge time	~2.5 hours	~1.5-2 hours	Shorter (smaller battery)
Weight contribution	~30 g	~15-20 g	Significant weight reduction

The smaller battery is the primary weight + cost reduction lever. Vol 5 covers power profile in detail.

7.3 Budget-tier power discipline

Some likely power-optimization choices the budget design might make:

Display sleep timer: aggressive default (~30 s vs ADV’s 2 min)
Wi-Fi power management: more conservative power-save modes by default
Brightness defaults: lower default brightness
No deep-sleep wake-on-keyboard: budget cost cut

These are guesses but consistent with budget-tier handheld design.

8. Sensors (likely absent)

The Cardputer ADV includes:

BMI270 6-axis IMU (accelerometer + gyroscope; tilt + orientation + motion)
Possibly more in future revisions

The Zero (presumed) likely cuts this. Implications:

No tilt-controlled UI
No motion-wake from sleep
No step counting / activity tracking
No gesture-based input

Mitigations: Grove IMU Unit ($5-10) adds back the capability if needed; takes the Grove port slot.

Other sensors that may or may not be retained:

Sensor	ADV has?	Zero has? (hypothesis)
BMI270 IMU	Yes	No (likely cut)
Hall effect	Maybe	Likely no
Temperature	Internal MCU sensor only	Internal MCU sensor only
Ambient light	No	No
Magnetometer	No (via IMU dropped)	No

9. Mechanical + thermal

9.1 Enclosure (hypothesized)

Material: ABS or polycarbonate plastic (industry standard for this form factor and price point)
Color: black or dark blue (M5Stack convention); could be color-variant SKU
Size: ~85 × 56 × 12-15 mm (credit-card form factor; thickness depends on battery sizing)
Weight: 35-45 g (light vs ADV’s ~50 g due to smaller battery)
Magnetic LEGO base: TBD — could go either way; cost factor

9.2 Likely physical durability

Drop resistance: light plastic shell, no rugged design — typical handheld durability
Splash resistance: none assumed (no IP rating likely)
Pocket-portable: yes, easily

9.3 Thermal profile

ESP32-S3 at full Wi-Fi load dissipates ~500-800 mW. In a small plastic enclosure with no active cooling:

Steady-state Wi-Fi RX/TX: case warms slightly (~5-10 °C above ambient)
Sustained heavy load: case temperature reaches 35-40 °C in 25 °C ambient
Thermal throttling: ESP32-S3 has internal throttling around 110 °C die; rarely hit in this form factor

For Zero use: thermal is not a meaningful constraint.

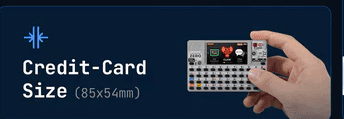

[FIGURE SLOT — Vol 2, § 9] Cardputer Zero hero shot showing overall form factor + scale (e.g., in hand). Source: vendor product page. Caption when filled: “Figure 2.6 — Cardputer Zero in hand. Credit-card form factor.”

10. Subsystem-by-subsystem cross-refs to Cardputer ADV

For deeper schematic detail on each Zero-shared subsystem, cross-reference the canonical Cardputer ADV Vol 2:

Zero subsystem	Cardputer ADV Vol 2 section	Notes for Zero
ESP32-S3 silicon	`Cardputer_ADV_Complete.html` Vol 2 § 3	Same family; Zero may use module vs Stamp-S3A

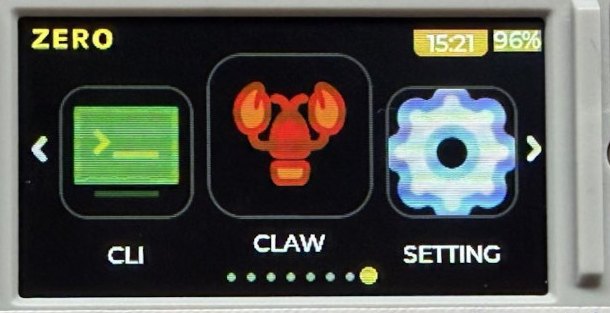

Display (ST7789V2)	Vol 2 § 4	Likely identical
Keyboard scanner (TCA8418)	Vol 2 § 5	May go GPIO direct on Zero
Power tree	Vol 2 § 7	Smaller battery; same topology
microSD interface	Vol 2 § 8	Identical

For Zero-specific subsystem deltas (cut audio, cut sensors, cut EXT bus):

This volume’s § 6-8 covers the cuts in detail
Vol 4 § 4 covers the cascading consequences

11. Resources

Cardputer ADV foundational reference (the schematic-grade source)

[Cardputer ADV deep dive Vol 2](../../M5Stack%20Cardputer%20ADV/03-outputs/Cardputer_ADV_Complete.html#vol02):
Cardputer ADV schematics: ../../../M5Stack Cardputer ADV/02-inputs/schematics/

Component datasheets (presumed)

ESP32-S3FN8: https://www.espressif.com/sites/default/files/documentation/esp32-s3_datasheet_en.pdf
ST7789V2 controller: Sitronix product page
TCA8418 keyboard scanner: Texas Instruments product page
TP4056 charge controller: NanJing TopPower or similar

M5Stack documentation

M5Cardputer Arduino library: https://github.com/m5stack/M5Cardputer
M5Unified library: https://github.com/m5stack/M5Unified
M5Stack docs: https://docs.m5stack.com/

Sibling references

M5Stick S3 hardware deep dive (smaller-stick form factor):

End of Vol 2. Next: Vol 3 walks the external interfaces — USB-C, microSD, Grove, audio (if present), antenna integration, and what the Zero does NOT have externally.
