Nyan Box · Volume 4
Nyan Box Volume 4 — Wi-Fi and BLE Toolset
The ESP32-radio tools — Wi-Fi network analysis, client detection, beacon work, BLE scan/spoof, BT Classic scan
Contents
| Section | Topic |
|---|---|
| 1 | About this volume |
| 2 | Wi-Fi tools |
| 3 | BLE + BT Classic tools |
| 4 | The tool catalog at a glance |
| 5 | How these compare to ESP32 Marauder |
| 6 | Education-mode framing of these tools |
| 7 | Resources |
1. About this volume
Vol 4 covers the nyanBOX tools that run on the ESP32’s own radio — Wi-Fi 2.4 GHz and Bluetooth (BLE + Classic). These are the “conventional” half of the nyanBOX tool catalog; they overlap heavily with ESP32 Marauder, Bruce, and every other ESP32-pentest firmware. The NRF24-specific tools are Vol 5; the two unique features (RemoteID, camera detection) are Vols 6-7.
Cross-reference: the canonical engineer-grade reference for ESP32 Wi-Fi/BLE pentest mechanics is the ESP32 Marauder Firmware deep dive (). The frame-level anatomy of deauth, the PMKID attack, the BLE channel structure, captive-portal mechanics — all live there in full. This volume covers what the nyanBOX specifically exposes and how its education-first wrapper presents it, citing the Marauder deep dive for the underlying mechanics rather than re-authoring.
2. Wi-Fi tools

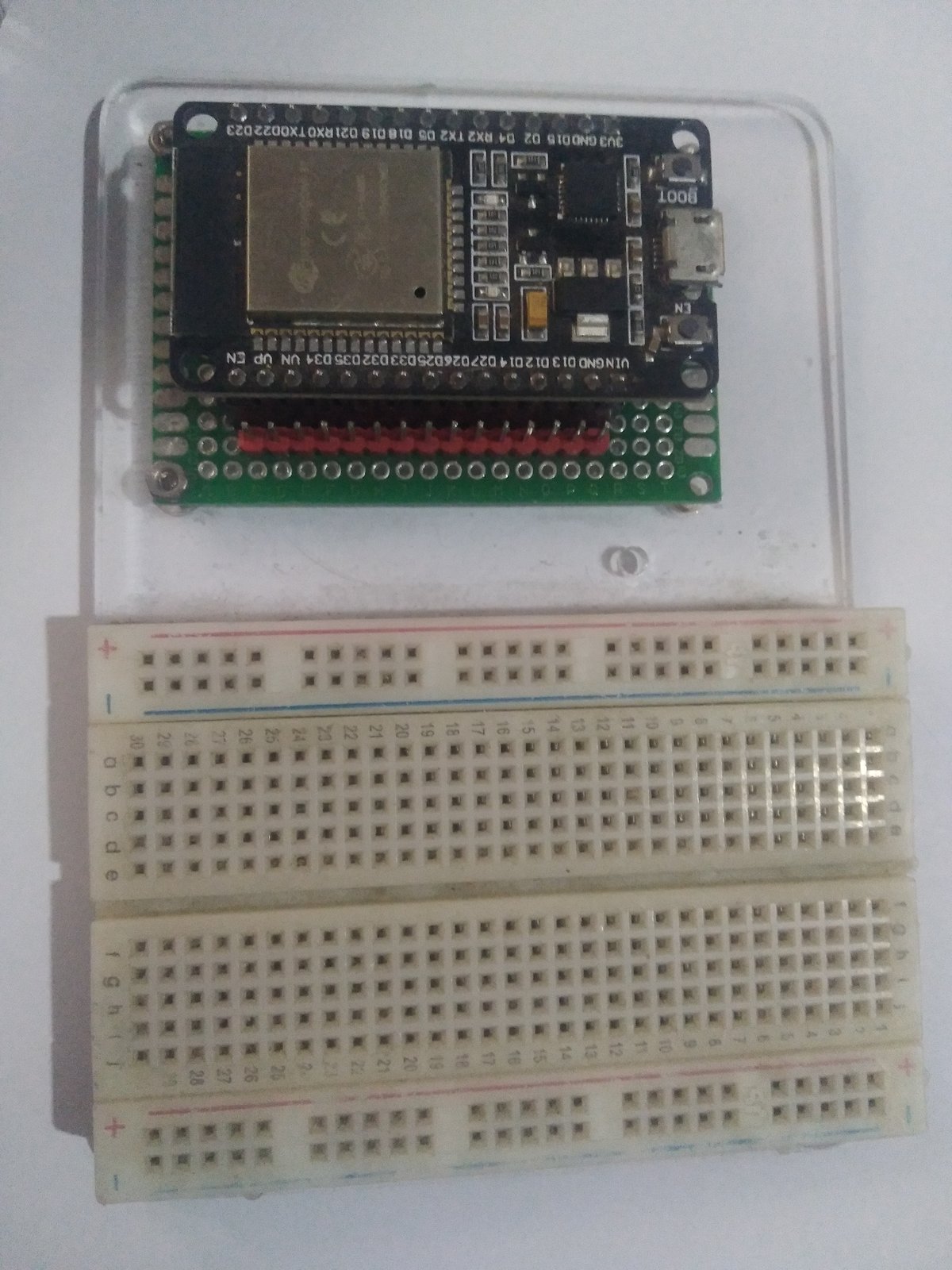

Figure 4.1 — ESP32 development board (representative). Photo: File:ESP32 Dev Board.jpg by Edwiyanto. License: CC BY-SA 4.0. Via Wikimedia Commons.
The ESP32-WROOM-32U does 2.4 GHz 802.11 b/g/n. In promiscuous mode it’s a monitor-mode capture device; in AP/STA modes it can inject. The nyanBOX’s Wi-Fi tool group:
2.1 Network analysis / scan
nyanBOX Wi-Fi Scan — OLED view
════════════════════════════════
┌────────────────────────────────┐
│ WiFi Scan 14 APs 87% │
├────────────────────────────────┤
│ > HOME-5A24 -41 ch6 WPA2 │
│ xfinitywifi -58 ch1 open │
│ IoT_Cam_3F -52 ch6 WPA2 │
│ [hidden] -67 ch11 WPA2 │
│ guest-net -71 ch1 WPA2 │
├────────────────────────────────┤
│ [OK] detail [↓] more [←] back │
└────────────────────────────────┘| Tool | What it does | Underlying mechanic |
|---|---|---|
| AP scan | Enumerate access points — SSID, BSSID, channel, RSSI, encryption | Passive beacon-frame capture |
| Client / station detection | Find devices associated to APs | Monitor-mode capture of data + probe frames |
| Probe-request capture | Log devices probing for known SSIDs | Monitor-mode; reveals device SSID history |
| Channel survey | Per-channel activity / congestion | Hop channels, count frames |
2.2 Beacon work
| Tool | What it does | Notes |
|---|---|---|
| Beacon spam | Broadcast many fake AP beacons | The “fill the Wi-Fi list with junk” demo; harmless-looking but disruptive |
| Beacon clone | Mimic a specific AP’s beacon | Foundation of evil-twin work |
| SSID flood | Mass-broadcast SSID names | A subset of beacon spam |
2.3 Active Wi-Fi tools
| Tool | What it does | Posture note |
|---|---|---|
| Deauth | Send deauthentication frames to disconnect clients | Disruptive — Vol 11 § 3 covers the legal line; likely XP-gated (Vol 8 § 4) |
| Evil portal / captive portal | SoftAP + captive-portal page to capture credentials | Disruptive + credential-capture — authorization required |
| Probe-response / Karma | Respond to probe requests to lure clients | Disruptive |
Posture callout: the active Wi-Fi tools (deauth, evil portal, Karma) are disruptive and in many jurisdictions illegal without authorization. The nyanBOX’s education-first design likely XP-gates these — a learner has to progress through passive tools first. For tjscientist, the gate is friction (Vol 8 § 4 covers bypass); the legal line is not — see Vol 11.
2.4 What the nyanBOX Wi-Fi tools do NOT do
| Not available | Why | Where to look |
|---|---|---|
| 5 GHz Wi-Fi | ESP32-WROOM-32U is 2.4 GHz only | AWOK ESP32 C5, Banshee |
| WPA handshake → host crack | The nyanBOX captures; cracking is a host-PC job | Capture, pull over USB, hashcat on host (cross-ref [Marauder deep dive Vol 9](../../ESP32%20Marauder%20Firmware/03-outputs/ESP32_Marauder_Firmware_Complete.html#vol09)) |
| Deep packet inspection | 128×64 OLED + ESP32 RAM limits this | Capture + offline analysis |
3. BLE + BT Classic tools
The ESP32 (original, not S3/C3) has both BLE and Bluetooth Classic — a capability the newer ESP32-S3 lacks. The nyanBOX inherits this.
3.1 BLE tools
| Tool | What it does | Underlying mechanic |
|---|---|---|
| BLE scan | Enumerate BLE devices — address, name, RSSI, advertised services | Passive advertisement capture on ch37/38/39 |
| BLE spoof | Advertise as a chosen device — name, address, service UUIDs | Crafted advertisement injection |
| BLE spam | Mass BLE advertisements (the “Apple/Android popup spam” family) | Advertisement flooding |
| Device tracking | Follow a BLE device by address + RSSI over time | Repeated advertisement capture |
3.2 BT Classic tools
| Tool | What it does | Notes |
|---|---|---|
| BT Classic scan | Discover Bluetooth Classic (BR/EDR) devices | The original ESP32 can do this — the S3 cannot |
| BT Classic device info | Class-of-device, name, services | Inquiry-based |
3.3 Why BT Classic matters
Most modern ESP32-pentest hardware is moving to the ESP32-S3 (faster, native USB, more RAM) — but the S3 dropped Bluetooth Classic. It’s BLE-only. The original ESP32 in the nyanBOX still has BT Classic. The practical consequence:
- The nyanBOX can scan/discover legacy Bluetooth Classic devices (older headsets, car kits, industrial gear, classic-BT IoT) that an S3-based device simply can’t see
- This is a small but genuine capability advantage over the ESP32-S3-based Game Over for BT Classic recon
3.4 The BLE-spam ethics note
BLE spam (the “device pairing popup flood” family — Sour Apple, Swift Pair spam, etc.) is in the catalog. It is disruptive and increasingly regulated — some jurisdictions treat it as harassment / interference. The nyanBOX likely XP-gates it. Vol 11 § 4 covers the posture. The [Marauder deep dive Vol 6](../../ESP32%20Marauder%20Firmware/03-outputs/ESP32_Marauder_Firmware_Complete.html#vol06) covers why mainline Marauder deliberately omits the worst BLE-spam variants — worth reading for the ethical context.
4. The tool catalog at a glance
The vendor advertises “40+ tools”. Here’s the structure of the catalog:
nyanBOX tool catalog — structure
══════════════════════════════════
┌─ Wi-Fi ──────────────────┐ ┌─ BLE / BT ───────────────┐
│ AP scan │ │ BLE scan │
│ Client detection │ │ BLE spoof │
│ Probe-request capture │ │ BLE spam │
│ Channel survey │ │ Device tracking │
│ Beacon spam / clone │ │ BT Classic scan │
│ Deauth │ │ BT Classic device info │
│ Evil portal │ └──────────────────────────┘
│ Karma / probe-response │
└──────────────────────────┘ ┌─ NRF24 / 2.4 GHz ────────┐
│ Spectrum analysis │
┌─ Detection (unique) ──────┐ │ Multi-channel sniff │
│ Drone RemoteID → Vol 6 │ │ Jam │
│ Hidden camera → Vol 7 │ │ Replay │
└──────────────────────────┘ │ Mousejack-class tools │
│ Transmit-and-confirm │ → Vol 5
┌─ System / education ──────┐ └──────────────────────────┘
│ XP progression view │
│ Device lock │
│ Settings │
│ Firmware info │
└──────────────────────────┘
"40+" comes from counting every distinct menu entry across
all groups. The exact catalog depends on firmware version —
verify against the vendor GitHub docs for the current list.[FIGURE SLOT — Vol 4, § 4] Photo of the nyanBOX main menu showing the tool-group structure on the OLED. Source: vendor product page. Caption when filled: “Figure 4.2 — The nyanBOX main menu / tool-group navigation.”
5. How these compare to ESP32 Marauder
The nyanBOX’s Wi-Fi/BLE tools are functionally a subset of ESP32 Marauder’s, wrapped in a friendlier UI. The honest comparison:
| Dimension | nyanBOX stock firmware | ESP32 Marauder |
|---|---|---|
| Wi-Fi tool depth | Solid, education-framed | Deeper — more attack variants, more capture detail |
| BLE tool depth | Solid | Comparable |
| BT Classic | Yes (original ESP32) | Yes (on ESP32, not S3 builds) |
| UI | Menu-driven, XP-scaffolded, beginner-friendly | Flat menu, assumes knowledge |
| Capture storage | EEPROM (small) — limited | microSD on Marauder-capable hardware |
| Source | Closed (likely) | Open source |
| The two unique features | Yes (RemoteID, camera) | No |
| Customizability | Low (closed) | High (open, forkable) |
5.1 The implication
For the Wi-Fi/BLE tools specifically, ESP32 Marauder is the more capable firmware. If tjscientist wanted only Wi-Fi/BLE depth, running Marauder on the nyanBOX hardware (Vol 8 § 5) — or just using the AWOK Dual Touch V3, which already runs Marauder — beats the stock firmware.
The nyanBOX stock firmware earns its place not on Wi-Fi/BLE depth, but on: (a) the two unique detection features, (b) the triple-NRF24 tooling, (c) the education UX. The Wi-Fi/BLE tools are table stakes — present and competent, but not the reason to buy.
6. Education-mode framing of these tools
The nyanBOX’s distinctive presentation of the Wi-Fi/BLE tools:
6.1 The scaffolding
Each tool, in the stock firmware, comes with progression context — the XP system frames why you’d use a tool and what it teaches:
Education framing — example
════════════════════════════
Tool: "Probe Request Capture"
Flat-firmware presentation (Marauder):
> Probe Req Sniff [start]
nyanBOX education presentation:
> Probe Request Capture
Devices broadcast the names of WiFi networks
they remember. This tool captures those — and
shows you how much a phone reveals just by
being on. [Tier 1: Passive] XP: +5
[start] [learn more]6.2 Is this valuable for tjscientist?
For a learner: yes, genuinely. The scaffolding turns a tool list into a curriculum.
For tjscientist (45+ years EE): the framing is friction — he knows what a probe request is. But it’s non-destructive friction; the tools still work, you just click past the context. And there’s a real use: the nyanBOX is the device to hand to someone else — a student, a new hire, a curious colleague. In that role, the education framing is the entire point.
6.3 The gate caveat
If the education framing also gates tools (you can’t use deauth until you’ve earned XP on passive tools), that’s friction tjscientist would want to bypass. Vol 8 § 4 covers whether the gate is real and whether it’s bypassable. For now: assume some gating exists; assume it’s bypassable (either via XP grinding, a settings option, or alternative firmware).
7. Resources
Canonical mechanics reference
- ESP32 Marauder Firmware deep dive (the engineer-grade reference for ESP32 Wi-Fi/BLE pentest mechanics):
- AWOK Dual Touch V3 deep dive (tjscientist’s owned Marauder-running unit):
../../../AWOK Dual Touch V3/03-outputs/
ESP32 radio
- ESP32-WROOM-32U datasheet: https://www.espressif.com/sites/default/files/documentation/esp32-wroom-32u_datasheet_en.pdf
- ESP-IDF Wi-Fi driver docs: https://docs.espressif.com/projects/esp-idf/en/latest/esp32/api-reference/network/esp_wifi.html
- ESP-IDF Bluetooth docs: https://docs.espressif.com/projects/esp-idf/en/latest/esp32/api-reference/bluetooth/index.html
Vendor
- Nyan Devices: https://nyandevices.com
- Vendor GitHub tool docs: linked from the site
End of Vol 4. Next: Vol 5 covers the NRF24 / 2.4 GHz toolset — spectrum analysis, jam, sniff, replay, Mousejack-class tools, and the transmit-and-confirm workflow the triple-radio hardware enables.
